How to create Catalog in SAP Fiori Launchpad

Hello every one, in this tutorial you will learn how to create Catalogs in SAP Fiori Launchpad.

Fiori Launchpad(FLP) is the entry point to SAP Fiori Apps on mobile or desktop devices. It can configured using Fiori Launchpad Designer(FLPD).

The launchpad designer can be launched with the following URL:
https://<server>:<port>/sap/bc/ui5_ui5/sap/arsrvc_upb_admn/main.html
https://<server>:<port>/sap/bc/ui5_ui5/sap/arsrvc_upb_admn/main.html ?sap-client=<client>&scope = <CONF/CUST>

1.Catalog

A catalog is a collection of app launcher tiles and target mappings (actions). To create or delete a catalog you have to launch the Fiori Launchpad Designer. To know how to launch the launchpad designer click here.

How to create Catalog in SAP Fiori Launchpad - 第1张  | 优通SAP

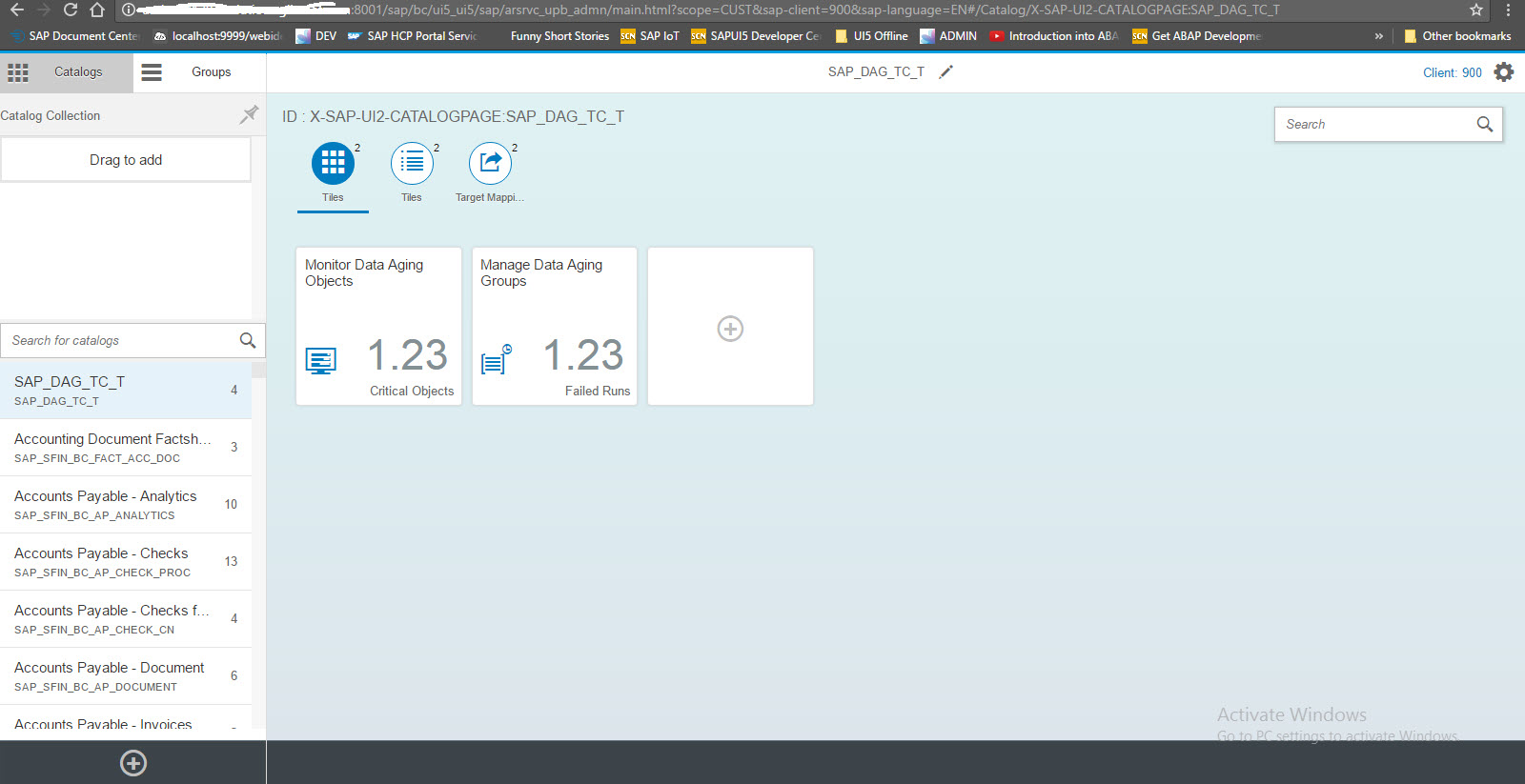

Fiori Launchpad Designer

In the Fiori Launchpad Designer all existing catalog names along with the number of app launcher tiles appear on the left panel.

2.Create Catalog

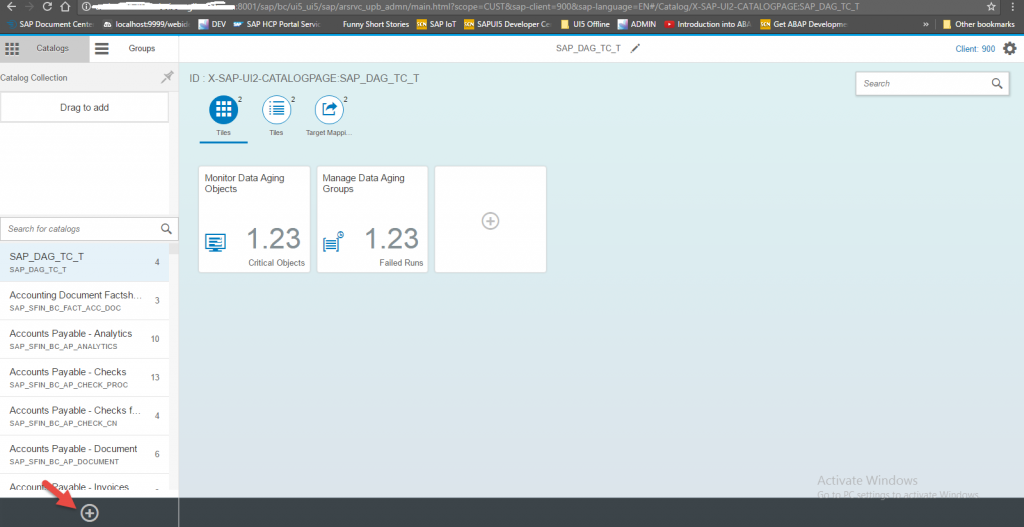

Click on Create Catalog add icon on the left panel.How to create Catalog in SAP Fiori Launchpad - 第2张  | 优通SAP

A Create Catalog dialog box appears.How to create Catalog in SAP Fiori Launchpad - 第3张  | 优通SAP
Choose Standard. Enter Title and ID. How to create Catalog in SAP Fiori Launchpad - 第4张  | 优通SAP

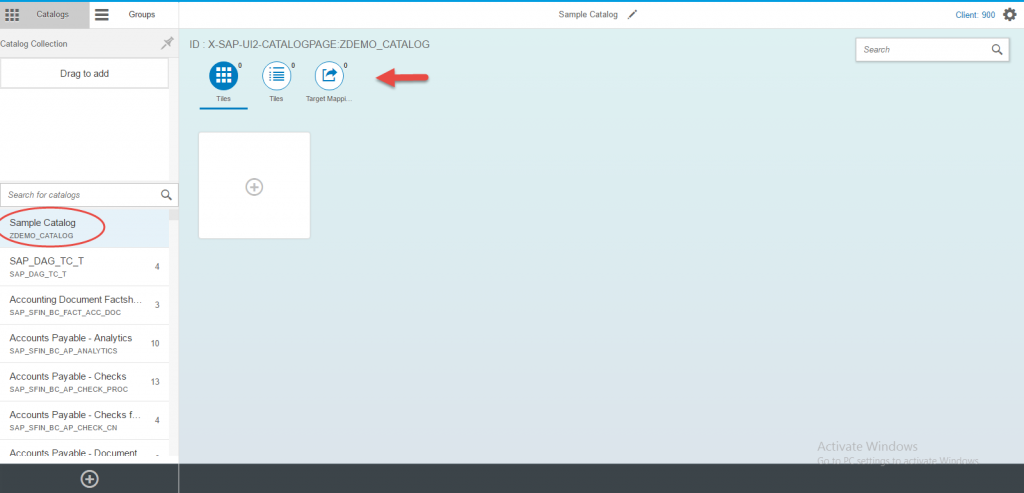

Choose Save. A new catalog will be created with specified title without any app launcher tiles appears in the left panel.How to create Catalog in SAP Fiori Launchpad - 第5张  | 优通SAP

3.Delete Catalog

Select any catalog from the catalog list on the left panel in launchpad designer.
Drag and drop the selected catalog in the trash.
Choose OK in the confirmation dialog box. The selected catalog is deleted from the catalog list.

You have successfully created Catalog in SAP Fiori Launchpad. Please stay tuned for SAP Fiori tutorials. Leave a comment in the below comment section and let us know your feedback.
