Hiding Features Using the UI.Hidden Annotation

Hiding Features Using the UI.Hidden Annotation

You can use the UI.Hidden annotation to hide or display specific features on the object page.

The default value of the UI.Hidden annotation is true, that is, a feature using the UI.Hidden annotation term is not visible on the UI. These are the values you can set:

Annotation System Behavior
Hiding Features Using<Annotation Term="UI.Hidden" Bool="false"/> The feature is visible
<Annotation Term="UI.Hidden" Bool="true"/> The feature is not visible
<Annotation Term="UI.Hidden" Path="Edit_ac"/> The feature is visible if the path evaluates to false and is not visible if the path evaluates to true.
Note

The path must point to a Boolean property. Expression bindings, for instance, using a negation with !, are not supported behind the path. For more information, see Expression Binding.
<Annotation Term="UI.Hidden" />

The default value is true so the feature will not be visible

Header Facets on Object Page

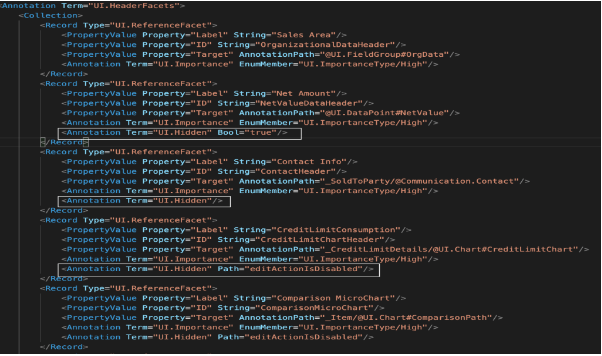

You can hide header facets as shown below:

Header Facets on Object Page

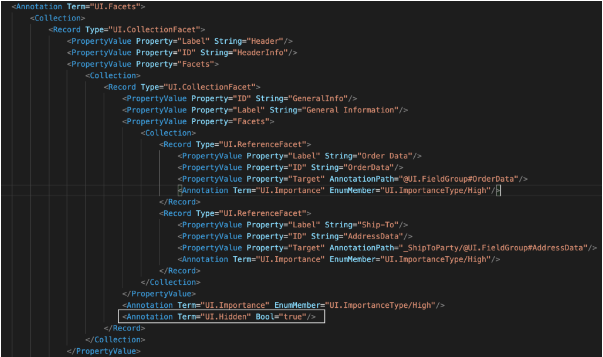

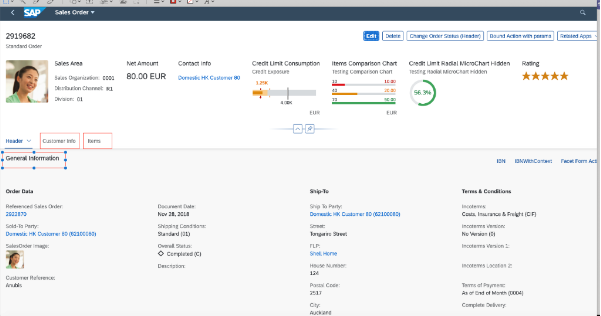

Sections on Object Page

You can hide an entire section. To hide one subsection, you can hide content within a section. See also the section about DataField Records in Header Facets in this topic.

Sections on Object Page

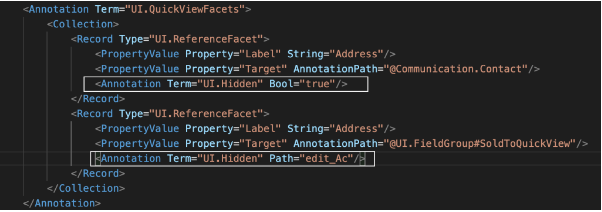

Content in Quick Views

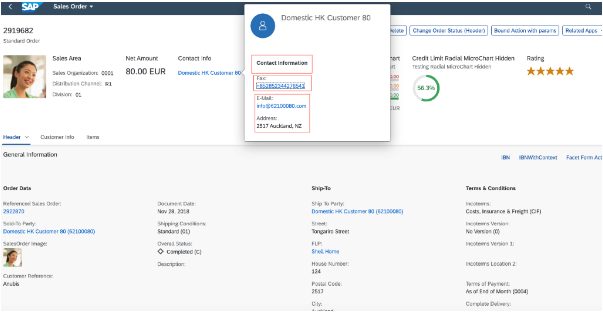

You can hide content in quick views, such as field groups like this:

Field Groups in Quick Views on Object Page

You can also use this annotation to hide the content in quick views in the list report.

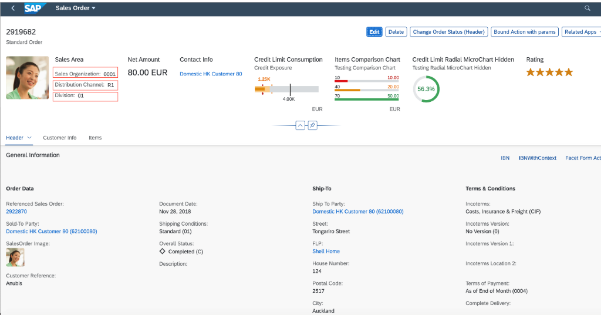

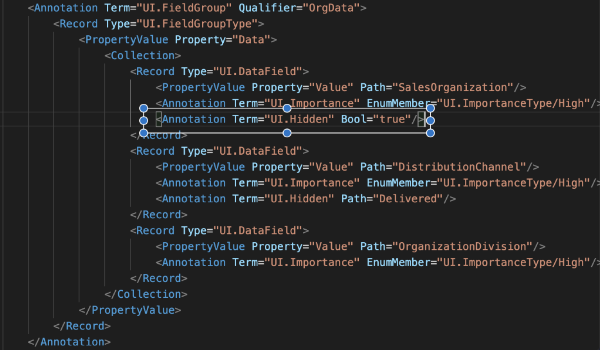

DataField Records in Header Facets

You can hide DataField records, for example, UI.DataField, UI.DataFieldForAnnotation in facets as shown below:

DataField Records in Header Facets

DataField Records in Facets

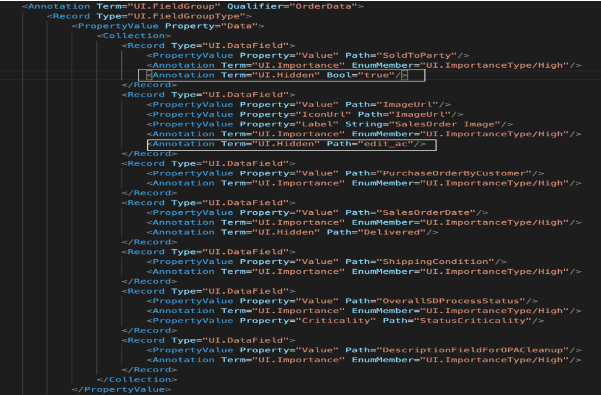

You can hide DataField records, for example, UI.DataField, UI.DataFieldForAnnotation in facets as shown below:

DataField Records in Facets

Additional Features in SAP Fiori Elements for OData V2

Header Facets on the Object Page

You cannot use the UI.Hidden annotation to hide the entire UI.FieldGroup and UI.Identification. If you want to hide these, you have to hide all DataField records in them.

DataField Records in Facets

You cannot use the UI.Hidden annotation to hide the entire UI.FieldGroup and UI.Identification. If you want to hide these, you have to hide all DataField records within them or use the UI.Hidden to hide the wrapper around the FieldGroup which is normally the ReferenceFacet or the DataFieldForAnnotation as shown in the examples in this page.

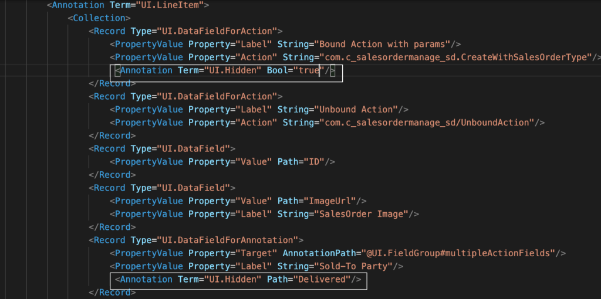

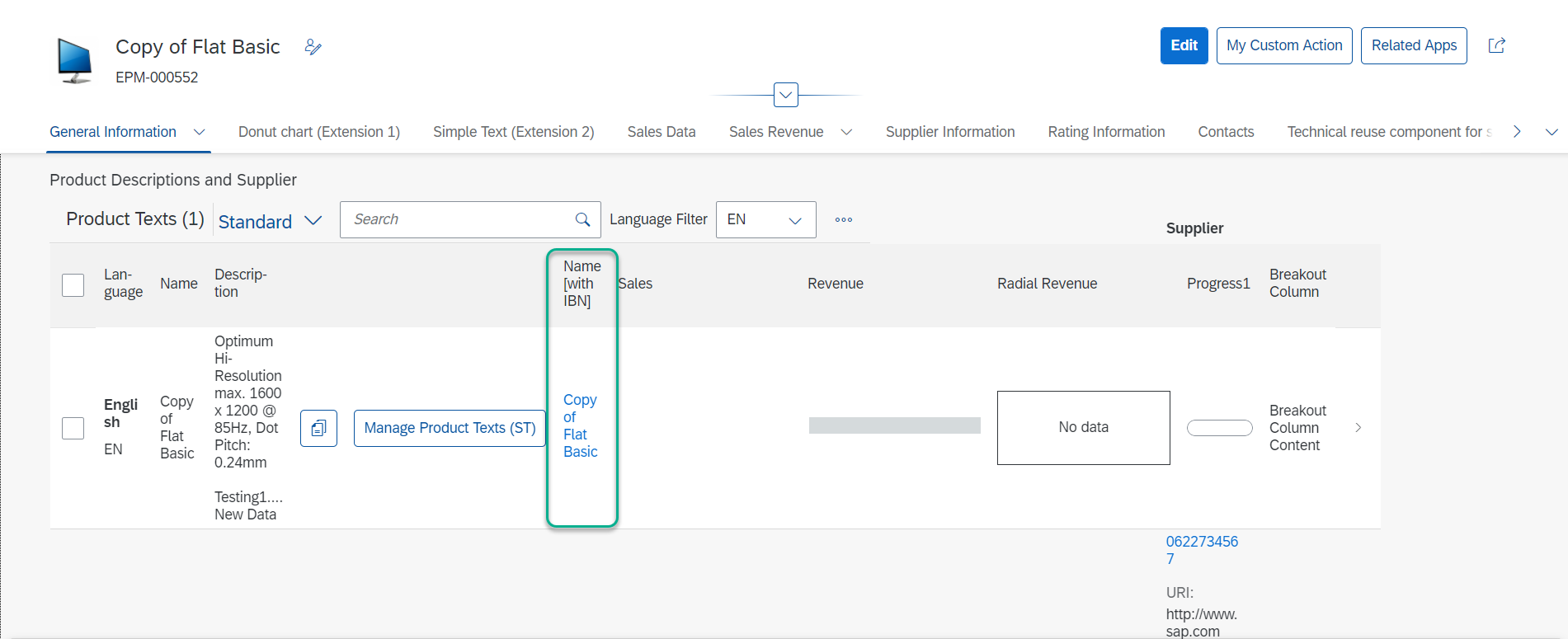

DataField Records in Tables

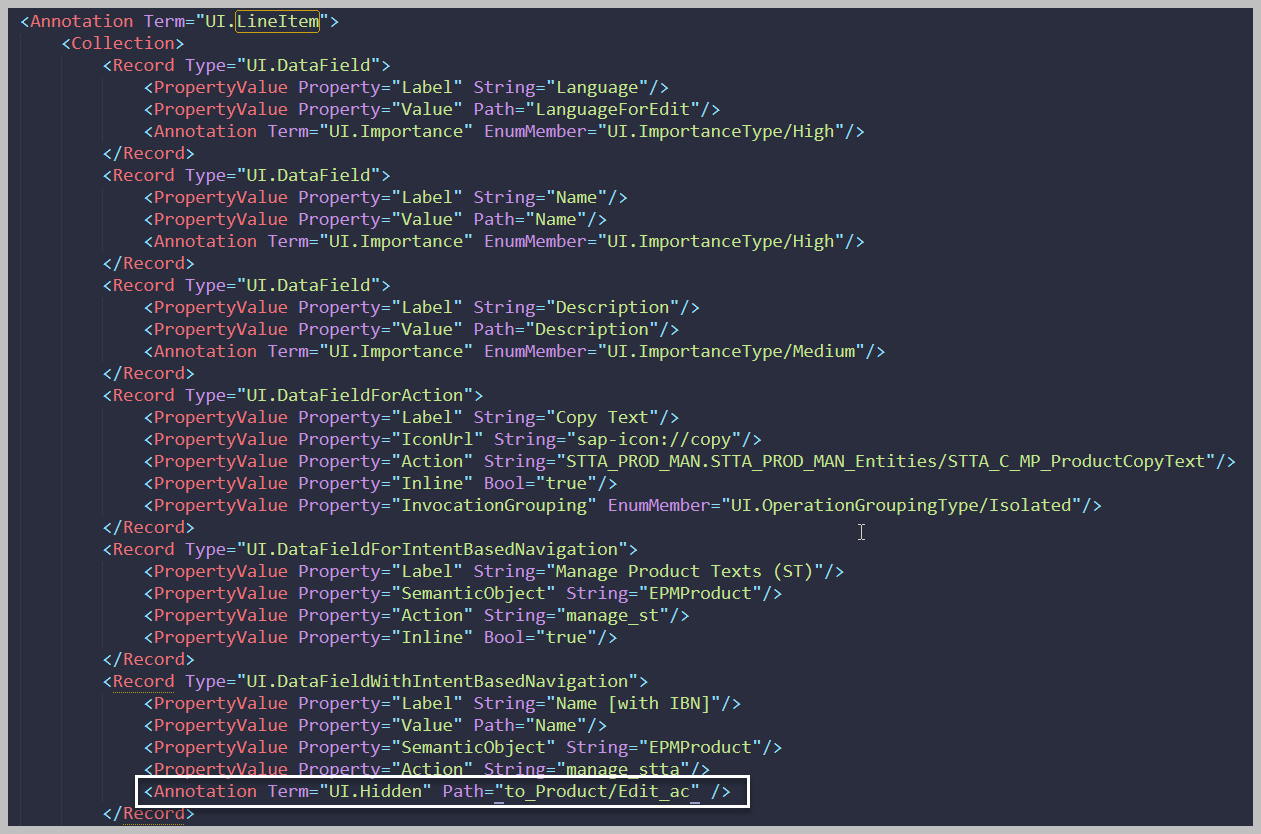

To hide table columns, the UI.Hidden path needs to refer to the property of the header instance, for example:

<Annotation Term="UI.Hidden" Path="to_Product/Edit_ac">

In the following example, STTA_C_MP_Product is the entity set of the object page header and STTA_C_MP_ProductText is the entity set of the smart table on the object page, and to_Product is the navigation property from STTA_C_MP_ProductText to STTA_C_MP_Product.

DataField Records in Tables

Notes on Hiding DataField Records

  • Even if you hide all determining actions in the footer, the footer is still displayed on the UI since it is required to show any bound messages coming from the back end. This also applies to determining actions added via the manifest.

  • The See More button is visible even if the content within it is hidden.

Additional Features in SAP Fiori Elements for OData V4

Header Facets on the Object Page

You cannot use the UI.Hidden annotation to hide the entire UI.FieldGroup and UI.Identification. If you want to hide these, you have to hide all DataField records in them or use the UI.Hidden to hide the wrapper around the FieldGroup which is normally the ReferenceFacet or the DataFieldForAnnotation as shown in the examples in this page.

DataField Records in Facets

You cannot use the UI.Hidden annotation to hide the entire UI.FieldGroup and UI.Identification. If you want to hide these, you have to hide all DataField records within them or use the UI.Hidden to hide the wrapper around the FieldGroup which is normally the ReferenceFacet or the DataFieldForAnnotation as shown in the examples in this page.

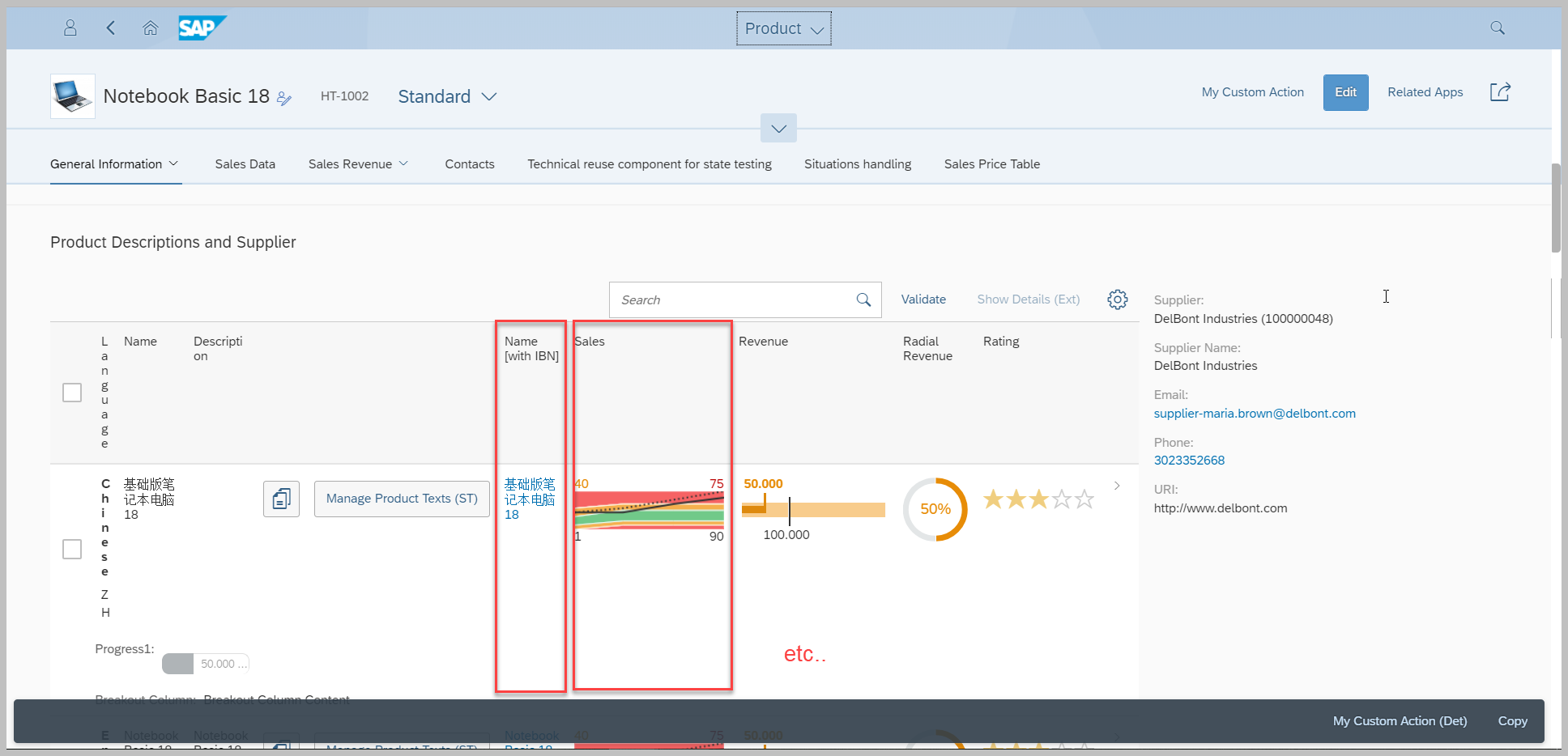

DataField Records in Tables

If UI.Hidden is provided a static true value for any field, then the column is not rendered at all. But if there is a path based value for this, the field is not shown for the instances for which the UI.Hidden evaluates to true.

Note

For a path based value for UI.Hidden, even if the path evaluates to true for all the rows, only the field is hidden and not the entire table column.

DataField Records in Tables
Note

Even if you hide all determining actions in the footer, the footer is still displayed on the UI since it is required to show any bound messages coming from the back end.
