Configuring Quick Views for Navigation Links

Configuring Quick Views for Navigation Links

You can configure the content area of the quick views to display specific data.

The content area, consisting of a title and additional information, for example, a field group, has a default behavior and can be adapted to your needs.

SAP Fiori Elements for OData V2

Title Area

  • Images

    • To display an image, annotate HeaderInfo.ImageUrl or HeaderInfo.TypeImageUrl. If you don't, no image is displayed.

    • If you annotate HeaderInfo.ImageUrl and HeaderInfo.TypeImageUrl, ImageUrl is evaluated first, and TypeImageUrl second. The ImageUrl/TypeImageUrl string and path including navigation properties are evaluated.

  • Title

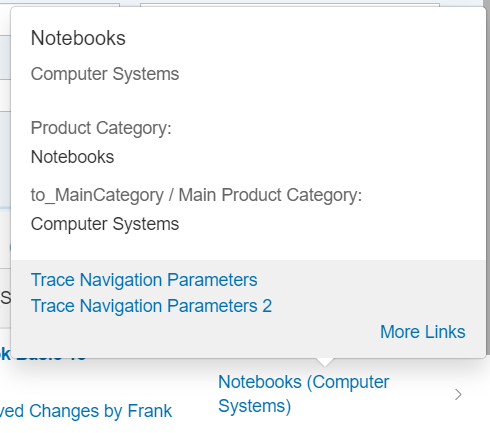

    • Enter the title according to the TextArrangement annotation. See the figure below: TextArrangementType/TextLast. Note that Computer Systems is declared as TextLast here.

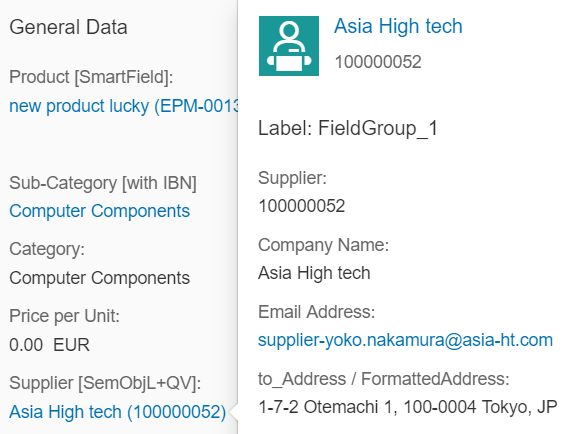

    • If a main navigation has been defined, the title is displayed as a link. In the example below, see the Asia High tech link:

  • Description

    • The description is always displayed beneath the title and must be filled according to the TextArrangement annotation.

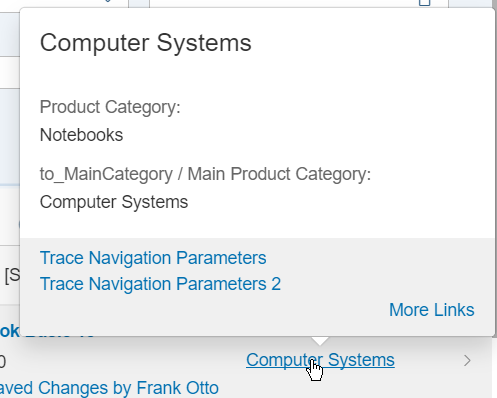

    • If the description is not filled, the title size is increased automatically and the description field remains empty, as shown below (TextArrangementType/TextOnly).

Content Area

The content area can contain field groups, contacts, and Data.Points.

Field Groups

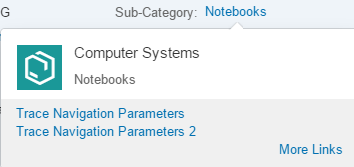

  • You can include any number of field groups or none at all. The example below shows a quick view with no reference facet, however, a header image included:

  • A field group can have a label. It is taken from the from within the <Record Type="UI.ReferenceFacet">.

  • For fields, the path including navigation properties is evaluated.

  • Fields support annotations such as IsEmailAddress, IsUrl, and IsPhoneNumber. Note that any links that would create a popover on the quick view are ignored by the system.

  • There are different types of content for field groups:

    • Interpreted by SmartField: DataField including criticality, DataFieldWithUrl

    • Interpreted by SAP Fiori elements: DataFieldWithIntentBasedNavigation

Contacts

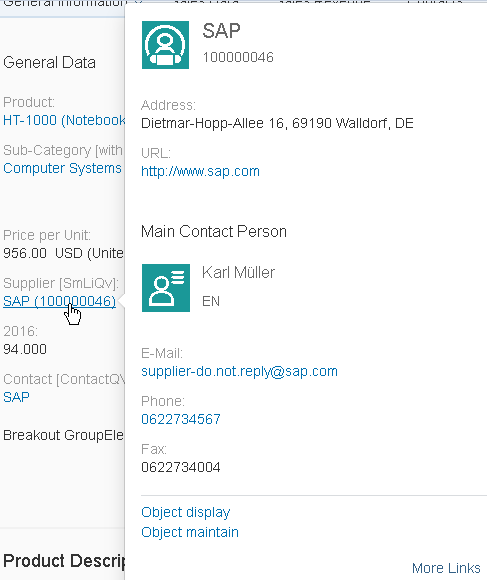

You can display any number of contacts or none at all. See the example below:

The following applies:

  • You can place the contact anywhere. It is specified by the position of the reference facet in the collection.

  • If the picture, title, and description belonging to a contact (contact title area) correspond with the content of the title area , the contact title area is not displayed.

  • The reference facet must point to a com.sap.vocabularies.Communication.v1.Contact.

DataPoints

  • You can place an existing DataPoint in your annotation.

  • You can place the DataPoint anywhere. It is specified by the position of the reference facet in the collection.

  • A DataPoint can have a label. It is taken from within the <Record Type="UI.ReferenceFacet">.

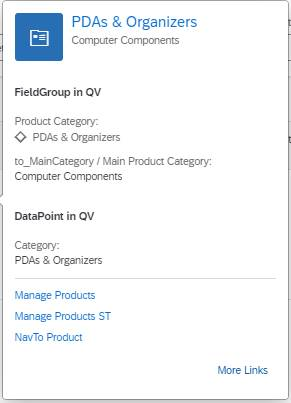

The sample code shows a quick view facet containing field group, contact and DataPoint:

<Annotations Target="STTA_PROD_MAN.STTA_C_MP_SupplierType">
   <Annotation Term="UI.QuickViewFacets">
      <Collection>
         <Record Type="UI.ReferenceFacet">
            <PropertyValue Property="Target" AnnotationPath="@UI.FieldGroup#SupplierQuickViewPOC_FieldGroup_1" />
         </Record>
         <Record Type="UI.ReferenceFacet">
            <PropertyValue Property="Label" String="Main Contact Person" />
            <PropertyValue Property="Target" AnnotationPath="@Communication.Contact#KeyAccount"/>
         </Record>
         <Record Type="UI.ReferenceFacet">
            <PropertyValue Property="Label" String="DataPoint in QV"/>
            <PropertyValue Property="Target" AnnotationPath="@UI.DataPoint#Product"/>
         </Record>
      </Collection>
   </Annotation>
</Annotations>

SAP Fiori Elements for OData V4

Title Area

  • Images

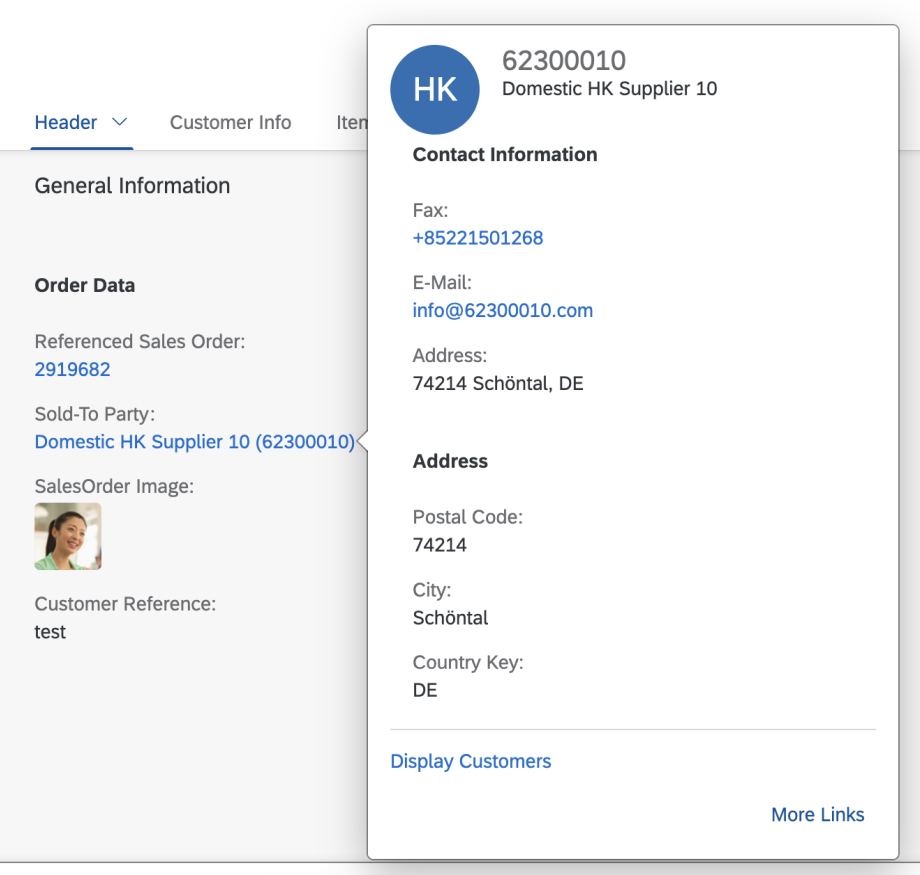

    • If you don’t provide HeaderInfo.ImageUrl or HeaderInfo.TypeImageUrl, you can provide initials in the HeaderInfo.Initials annotation. The initials will be displayed if no HeaderInfo.ImageUrl or HeaderInfo.TypeImageUrl is provided.

    • If no HeaderInfo.ImageUrl, HeaderInfo.TypeImageUrl, or HeaderInfo.Initials is provided, no image will be displayed

  • Title

    • The title is taken from HeaderInfo.Title.

    • If a main navigation has been defined, the title is displayed as a link. In the example below, see the Asia High tech link:

  • Description

    • The description is taken from the HeaderInfo.Description annotation.

Content Area

The content area can contain field groups, contacts, and DataPoints.

Field Groups

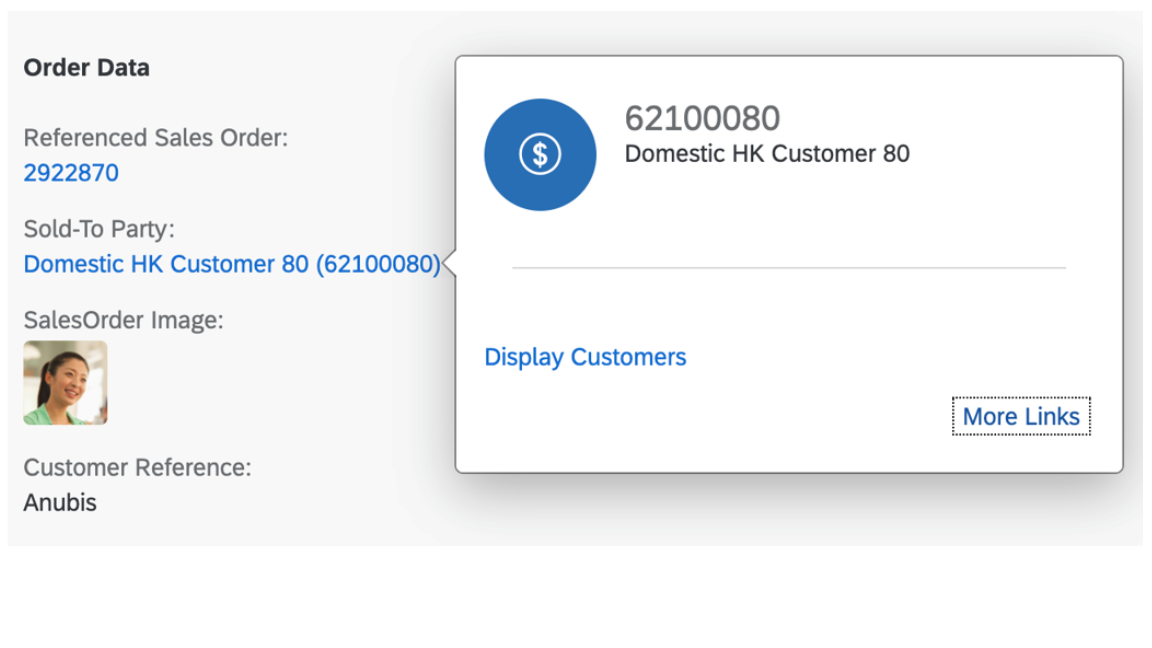

  • You can include any number of field groups or none at all. The example below shows a quick view with no reference facet, however, a header image included:

  • A field group can have a label. It is taken from within the <Record Type="UI.ReferenceFacet">.

  • For fields, the path including navigation properties is evaluated.

  • Fields support annotations such as IsEmailAddress, IsUrl, and IsPhoneNumber. Note that any links that would create a popover on the quick view are ignored by the system.

  • There are different types of content for field groups:

    • Interpreted by SmartField: DataField including criticality, DataFieldWithUrl

    • Interpreted by SAP Fiori elements: DataFieldWithIntentBasedNavigation

Contacts

You can display any number of contacts or none at all. See the example below:

The following applies:

  • You can place the contact anywhere. It is specified by the position of the reference facet in the collection.

  • If the picture, title, and description belonging to a contact (contact title area) correspond with the content of the title area , the contact title area is not displayed.

  • The reference facet must point to a com.sap.vocabularies.Communication.v1.Contact.

DataPoints

  • You can place an existing DataPoint in your annotation.

  • You can place the DataPoint anywhere. It is specified by the position of the reference facet in the collection.

  • A DataPoint can have a label. It is taken from within the <Record Type="UI.ReferenceFacet">.

The sample code shows a quick view facet containing field group, contact and DataPoint:

<Annotations Target="STTA_PROD_MAN.STTA_C_MP_SupplierType">
   <Annotation Term="UI.QuickViewFacets">
      <Collection>
         <Record Type="UI.ReferenceFacet">
            <PropertyValue Property="Target" AnnotationPath="@UI.FieldGroup#SupplierQuickViewPOC_FieldGroup_1" />
         </Record>
         <Record Type="UI.ReferenceFacet">
            <PropertyValue Property="Label" String="Main Contact Person" />
            <PropertyValue Property="Target" AnnotationPath="@Communication.Contact#KeyAccount"/>
         </Record>
         <Record Type="UI.ReferenceFacet">
            <PropertyValue Property="Label" String="DataPoint in QV"/>
            <PropertyValue Property="Target" AnnotationPath="@UI.DataPoint#Product"/>
         </Record>
      </Collection>
   </Annotation>
</Annotations>
