Formatting, Parsing, and Validating Data

Formatting, Parsing, and Validating Data

Data that is presented on the UI often has to be converted so that is human readable and fits to the locale of the user. On the other hand, data entered by the user has to be parsed and validated to be understood by the data source. For this purpose, you use formatters and data types.

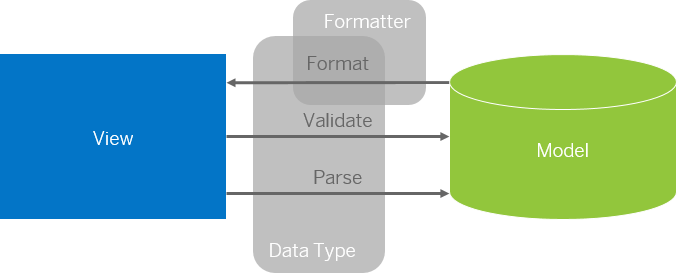

This image is interactive. Hover over each area for a description. Click highlighted areas for more information

91f27e3e6f4d1014b6dd926db0e91070.xmle1b625940c104b558e52f47afe5ddb4f.xml

Formatters are used to define the formatting of data on the UI while data types work in both directions: they format the data on the UI and parse and validate user input that is entered.

You can either use standard formatters and data types or define your own custom objects. SAPUI5 provides standard formatter classes that can be used to define custom data types and custom formatters.

If an error occurs during formatting or parsing, the following exception occurs: sap/ui/model/FormatException / sap/ui/model/ParseException.

Note

For some controls like sap/m/Input you can also use API properties that define the data type and add additional features like restricted input options, for example, <Input type="Number"/>.

Formatters

A simple formatter can be defined directly in the controller. For example, you can format name data with the first letter in upper case:

myFormatter: function(sName) {
    return sName.charAt(0).toUpperCase() + sName.slice(1);
}

Note

We recommend to use a separate formatter.js file that groups the formatters and makes them globally available in your app. You can then load the formatters in any controller by defining a dependency and instantiating the formatter file in a formatter variable. For more information, see Step 23: Custom Formatters in the Walkthrough tutorial.

When the formatter is defined in the controller, you can use it, for example, in an XML view:

<Text text="{
    path : 'person/name',
    formatter : '.myFormatter'
}" />

Note

You can also use predefined formatter functions for standard uses cases, like formatMessage from module sap/base/strings/formatMessage.

Caution

The automatic type determination for OData V4 interacts with targetType and can, thus, influence a formatter’s input values. For more information on type determination in OData V4, see Type Determination.

Data Types

Simple Types

If you also want to validate and parse input values, you use data types. All data types inherit from the abstract sap.ui.model.Type class.

A subclass of this class is sap.ui.model.SimpleType. The currently available types inherit from SimpleType class.

For simple data types, you can generate the following parameters in the constructor:

  • formatOptions: Format options define how a value is formatted and displayed in the UI.

  • constraints: Constraints are optional and define how an input value entered in the UI should look like. During parsing the value is validated against these constraints. For example, an Integer type has a constraint for maximum that is automatically validated when parsing the input values.

<Input value="{
    path: '/number',
    type: 'sap.ui.model.type.Integer',
    formatOptions: {
        minIntegerDigits: 3
    },
        constraints: {
    maximum: 1000
    }
}" />

For a complete list of all simple types, see API Reference: sap.ui.model.Type.

OData Types

These types support OData V2 and V4 including relevant property facets as constraints. The OData types represent the OData EDM primitive types. For more information, see Primitive Data Types in the OData documentation.

For a complete list of all OData types, see API Reference: sap.ui.model.odata.type.

Note

Also see the information on automatic type determination in OData V4 under Type Determination.

Custom Data Types

You can also define a custom data type based on sap.ui.model.SimpleType by specifying a custom implementation for formatValue, parseValue, and validateValue:

sap.ui.define([
    "sap/ui/model/SimpleType"
], function (SimpleType) {
    "use strict";
    return SimpleType.extend("sap.ui.demo.myCustomType", {

        formatValue: ...

        parseValue: ...

        validateValue: ...

    });
});

Example

Step 5: Adding a Flag Button of the Testing tutorial shows how to implement a custom data type.
