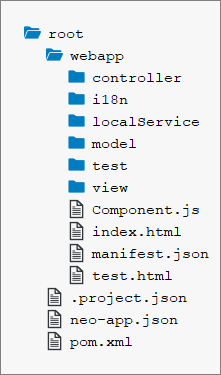

The 3 Main Folders

The 3 main folders in an application are the root folder, the webapp folder and the test folder. Regarding their structure, the webapp folder should be inside the root folder, and the test folder should be located inside the webapp folder, as shown below:

The root Folder

The root folder should contain files that are not part of your application coding. Examples are build configuration files, such as a pom.xml for maven or a Gruntfile.js for node/grunt, and documentation files like readme.md or txt. These files may also be grouped in folders if needed. For example, you could group all documentation files into a doc folder.

The webapp Folder

The webapp folder contains all the code that is related to the application. This means running and extending the application using the extensibility mechanism offered by SAPUI5. This includes the JavaScript files for the logic, view files written in xml, html, json or js format, and also files for localization, such as i18n.properties files. Any files that are only relevant for testing should be put inside the test folder. For more details about the webapp folder, see the section below. For more information about extensibility and localization, see Extending Apps and Localization respectively.

The test Folder

The test folder contains all of the files needed for running automated tests for your application, as well as for launching your application in a sandbox mode so that you can do manual testing. For more details about the test folder, see the section below.

Why Use 3 Separate Folders?

To achieve sound performance when loading your application, the code you deploy to your production servers should only contain a component-preload.js and a manifest.json file. This means that when you create a package with a build, it is easier if all the files you really want to deploy are inside one folder. This is true no matter which build framework you use. We recommend using the webapp folder for this. Nothing inside the root folder is needed for running the app, so it's not included on a production server serving your application. The content of the test folder has to be executed in design time and during the automated test execution on a central server. We choose to include it inside the webapp folder, to be able to reference resources of the webapp folder relatively to the test folder. This folder has to be excluded when you are building a component-preload.js. You should never reference resources of the test folder from your application, because when you deploy to a productive environment, the resource cannot be loaded. For more information about the manifest.json file, see Descriptor for Applications, Components, and Libraries.

The webapp Folder in Detail

Aside from the test folder, the webapp folder contains 3 folders related to the MVC (model, view, controller) pattern used in SAPUI5, as well as a localization folder and a local-services folder used for emulating OData services. Each of these folders is outlined below.

For standalone app, this folder also contains an index.html file that is used to start the app and to instantiate the component. If your apps is built for the SAP Fiori launchpad no index.html file is created but only files for testing the app in the FLP sandbox.

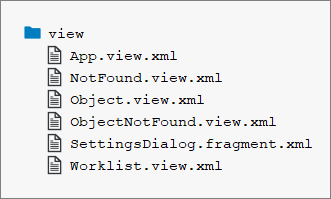

The view Folder

In the view folder, you should put all SAPUI5 views and fragments. This folder should not contain any application logic, so no JavaScript files unless you are using JavaScript views. JavaScript views are not recommended because it is easier to mix controller logic when building up a view. In declarative views this is not possible. In the example shown below, the view folder contains a mixture of views and fragments. If this folder gets too big, you might consider adding subfolders to group views by their semantics. In this example for instance, you could add a detail folder and move all views that are related to the detail area of your application to this subfolder.

For more information about views and fragments, see Views and Reusing UI Parts: Fragments respectively.

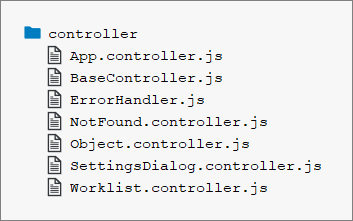

The controller Folder

The controller folder contains all the controllers used by your views, and might also contain additional logic files that are used by one or more controllers. The structure of the controller folder should mirror the view folder. If a view is in a subfolder, the controller of the view should also be in the corresponding subfolder.

The model Folder

The model folder is where you put any files needed for creating models and logic relating to model data. This includes grouping, filtering and formatting data.

In the above example, models.js is a factory for creating models that are used by our application.

Localization Folder - i18n

We also have one dedicated folder for localization files. An SAPUI5 app will potentially be translated into many languages. Each of those languages has its own .properties file. Note that although the ResourceModel is an SAPUI5 model from a technical point of view, the localization folder is not part of the model folder. This is because the .properties files have a different semantic since they are used for translation. The code needed to instantiate the ResourceModel is located in the model folder. For more information about localization, see Localization. For more information about the ResourceModel, see the API Reference in the Demo Kit.

The localService Folder

The localService folder is used to emulate OData services for tests or as a preview mode for your application. It is also intended for design-time tools since it contains the metadata.xml file, which describes the backend connection of your application. You need to have one metadata.xml file per OData service, which exactly matches the remote service’s metadata. The location of this file also needs to be maintained in the data sources section of the manifest.json file. For more information, see Descriptor for Applications, Components, and Libraries.

For integration tests, it is helpful if you are able to mock your backend with stable data. A second use case for this is for running an application in a preview mode so that it serves data locally instead of connecting to a backend. This is why this folder also contains files necessary for starting up a mock server. The data served by the mock server is put inside the mockdata folder. If you need to, you can also include multiple sets of mock data here, by giving each set its own folder. For more information about mock servers, see the API Reference in the Demo Kit.

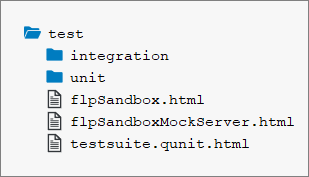

The test Folder in Detail

The test folder contains three sets of files: files related to unit tests, files related to integration tests, and html files for either launching the tests or for testing the application manually. Inside the unit folder, the structure of the webapp folder is replicated for the files that are being tested.

In this example shown above, the files being tested are webapp/model/formatter.js and webapp/model/models.js. You may be using JavaScript files or html files to run your tests, depending on the runners you are executing your tests with. We recommend using .js files for writing your tests, so that you can run them with tools such as karma for instance.

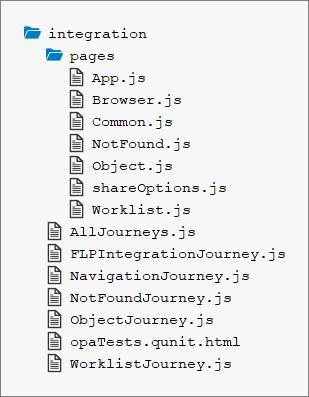

The integration folder contains the OPA tests of your application. We decided to separate our unit and integration tests, since the execution time of the integration tests is much longer. While the unit tests run in less than 10 seconds, the integration tests run for over 2 minutes. These times will vary a lot depending on the size of your project. If the project grows and grows, the difference in the execution time will also grow. For this reason, we recommend making both kind of tests separately executable so that developers can choose which sets of tests they want to run during design time.
